WOLF G2 cell sorter technical overview

1. What is Flow Cytometry?

1.1. Flow cytometry – definitions, principles and uses

Flow cytometry is a technique used to detect and measure physical and chemical characteristics of a population of cells and particles.

A sample containing cells is suspended in a fluid (sheath) and injected into a flow cytometer; the sample is then focused to ideally flow one cell at a time through a laser beam. The light scattered by each cell is characteristic to that individual cell’s size and its intracellular components.

Cells are often labeled with fluorescent markers so that the light is first absorbed and then emitted in a band of wavelengths specific to the given marker.

Flow cytometry is used in many different settings, including basic and applied research as well as a clinical diagnostic tool. The data acquired can be used for cell counting, specific cell type or cell functions characterization, biomarker detection and diagnosis.

1.2. Analysis and Sorting

Flow cytometry is an imaging technique with an ever-growing array of complex instrumentation available for researchers to use. Broadly, two types of flow cytometers are currently on the market: flow analyzers and flow sorters.

Flow analyzers are analytical and diagnostic instruments, often built with multiple lasers and a wide variety of detectors. These instruments are often able to visualize and analyze complex and diverse multi-color samples, extracting quantifiable data.

Flow sorters are complex instruments that go beyond analysis and data visualization because they can physically separate and thereby purify or ‘sort’ defined cell sub-populations of interest based on their optical properties. The sorted cells can be used for downstream assays or for further analysis. This method is called Fluorescence Activated Cell Sorting (FACS).

2. FACS: Workflows and application examples – what can the WOLF G2 do for you?

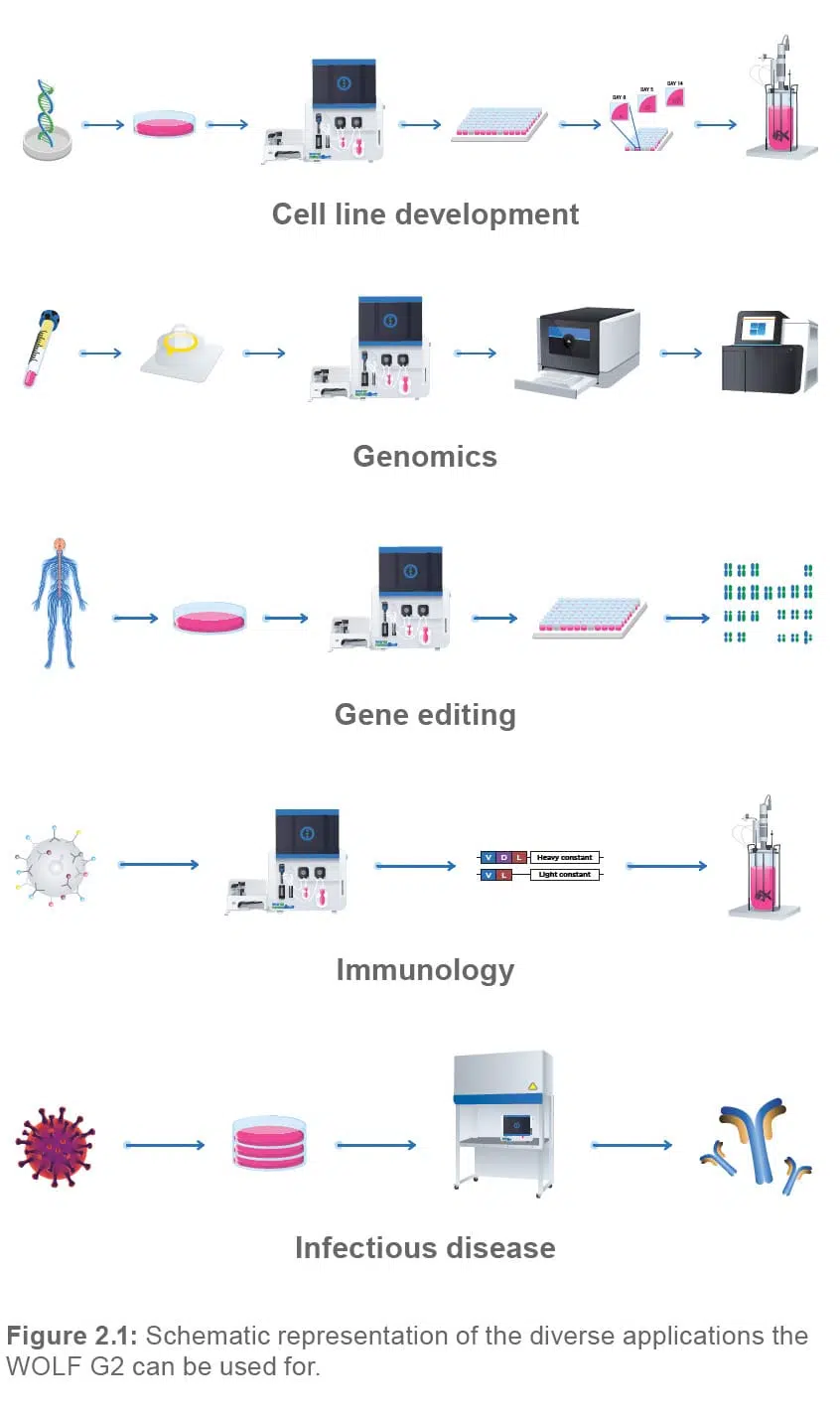

FACS is a method with a wide variety of applications. From environmental science and plant biology to cell biology and infectious diseases, sorting of particles of interest from a heterogeneous pool is a technique that is upstream of many applications, which often involve complex analytical assays. The WOLF G2 fits perfectly in this diverse landscape and offers a user- and cell-friendly experience along with great versatility and portability. From cell line development to genomic assays, we have you covered (Figure 2.1)!

3. How does the WOLF G2 work?

3.1. Principal components of a flow cytometer

A flow cytometer is a complex instrument composed of three main systems: fluidics, optics, and electronics (Figure 3.1). When the three systems work in conjunction with one another, the user can acquire a great deal of information about a given cell or population.

Each of the three systems serves an integral purpose leading to the acquisition of data.

The fluidics system transports the cell sample from its tube, throughout the system and flow cell, and to an outlet port.

The optics system is responsible for illuminating the sample, as well as transporting and collecting the light scatter and emitted fluorescent light to the detection system.

The electronics system is responsible for digitizing and further processing the signals obtained from the detectors for subsequent analysis.

In flow sorters, the incorporation of a sorting mechanism enables the capture of a specific subset of cells from a heterogeneous population.

The WOLF G2 possesses optics and electronics systems like traditional cell sorters. However, unlike traditional sorters, the WOLF G2 employs a microfluidics-based sorting mechanism that operates at a considerably lower pressure, resulting in gentler treatment and higher viability of the sorted cells.

3.2. Fluidics system – the innovation is the cartridge!

Unlike traditional cell sorters, the fluidics system of the WOLF G2 is completely contained within disposable microfluidic cartridges. The system itself contains no internal fluidic components. Each microfluidic cartridge, packaged in a sterile pouch and equipped with an individual QR code, consists of a series of tubing and channels designed to move the cell sample throughout the system.

Once the cartridge is ready for analysis, the sample solution and sheath buffer are taken up into the tubing as the two peristaltic pumps rotate (Figure 3.2).

The sheath and sample solutions travel independently through separate channels within the macro-cartridge until they reach the cartridge microchip. There, the sheath surrounds the sample and hydrodynamically focuses the cells into a stream of single cells (Figure 3.3).

From that point, the hydrodynamically focused sample solution continues towards the laser interrogation point at the chip center. There, each individual cell is interrogated by the two pulsating lasers.

As the cell passes by the sorting junction, depending on its properties and the sorting parameters pre-set by the user, it will either get sorted into the A or C channels, or flow into the B-waste channel (Figure 3.4.).

The sample then continues its progress through separate channels towards the outlet ports (A, B, C).

If the cells are sorted in bulk, droplets containing the sorted cells form at the A and C outlet ports; the unsorted cells drip out of port B. The droplets fall by gravity into the collection tubes below.

If the cells are sorted in single-cell mode using the N1 Single- Cell Dispenser, the sorted solution travels through additional tubing lines extending from the A and C outlets to a needle head. This needle head attaches to the N1 motor head, which will move in the X, Y and Z directions to submerge the tubing line directly into each well of the 96 or 384 well plate.

3.3. Optics System

The WOLF G2 cell sorter comes equipped with two 55mW lasers in three possible configurations. The 488nm blue laser is present across all configurations, complemented by either a 405nm violet laser, a 561nm yellow laser or a 637nm red laser.

In addition to forward and back scatter, the WOLF G2 can detect up to 9 colors (depending on the configuration) and offers great flexibility to the user in terms of multi-color assay development.

The entire optical pathway is stationary; the only mobile part within the system is the cartridge, situated within a fixture. A semi-automated algorithm moves the fixture in the X, Y and Z directions to align the cartridge to the laser beams. Like traditional flow cytometers, the WOLF G2 utilizes mirrors, dichroic mirrors, filters, lenses, and pinholes to direct the laser light towards the cell sample and collect the scattered and emitted light into a series of detectors.

Each component of the optical pathway possesses a unique, yet critical function designed to capture information about a single cell:

  • Lasers are high-powered energy sources that each produce a beam of light consisting of a single The WOLF G2 uses a single optical pathway for both lasers; the lasers illuminate the samples in rapidly alternating pulses.
  • Mirrors reflect light to alter its direction and guide the laser beams to the cartridge center.
  • Dichroic mirrors transmit light of a certain wavelength, while reflecting light of alternative wavelengths.
  • Optical filters transmit light of a certain wavelength, while blocking light of alternative wavelengths.
  • Photomultiplier tubes (PMTs) are designed to detect and convert emitted light into electric current for processing by the electronic system.


3.4. Electronics

The pathway from cell detection to a dot on a dot plot consists of three main steps:

  1. signal detection
  2. analog to digital conversion
  3. signal

Within the WOLF G2 Cell Sorter, there are seven different detectors that are constantly collecting data: one silicon diode detector collecting forward scatter data, and six photomultiplier tubes (PMTs) collecting backscatter and emitted fluorescence data. The five PMTs collecting fluorescence data are shared between the two lasers, which can allow for up to nine fluorescent channels worth of possible fluorochrome combinations (depending on the laser configuration). When the lasers are powered on, each of these detectors will possess a baseline signal that should remain constant over time.

When a cell enters the laser beam, there will be a measurable increase in signal over the baseline. The peak measured signal intensity will occur when the event is centered within the laser beam; subsequently, as the event passes by the laser, the measured signal will return to baseline. Therefore, as each event passes by the laser beam, a pulse of signal will be generated and recorded by each detector (Figure 3.5).

Each of these pulses can be reduced to a set of characteristics (Figure 3.6.):

  • height, represents the maximum signal intensity generated by the event.
  • width, represents the amount of time that a particular event spent interacting with the laser beam.
  • area under the curve, represents the total or integral signal intensity of the event.

By translating each pulse into numeric data, and by plotting these values in the format of a dot plot or histogram, user can begin to visually assess the morphology and fluorescence of their particles, and select the events required for their application.


3.5. Sorting mechanism and verification

Unlike traditional cell sorters that utilize electrostatic charges to deflect cells towards their respective sorting channels, the WOLF G2 utilizes a low-voltage piezoelectric actuator (PZT) situated within the cartridge chip to gently redirect the flow of the sample-sheath solution. Rather than apply a charge directly to cells, the WOLF applies a charge to the PZT, inducing it to pulse in two different directions, thus applying a mechanical push/pull force on the fluid within the chip (Figure 3.7).

As mentioned previously, there are three different outlet channels (A, B, and C) at the sorting junction located within the cartridge chip. The stream of fluid, if not altered by a PZT pulsation, flows straight into the middle channel (channel B), which constitutes the waste or flow-through channel. To sort a cell to the A-sorting channel, the PZT will pulse upwards, thus pulling the fluid underneath, diverting the flow towards the A channel. Alternatively, to sort a cell to the C-sorting channel, the PZT will pulse downwards, thus pushing the fluid underneath, diverting the flow towards the C channel.

To ensure that each cartridge is sorting efficiently, the user performs a calibration step during the set-up process, using green calibration beads. The calibration step can be compared to determining the “drop delay” in traditional cell sorters; it serves to determine the best time delay between laser detection of a target cell and PZT pulsation to sort the same cell. The calibration step is an automated algorithm that systematically assesses the sorting efficiencies at variable PZT pulse delays.

To assess whether a bead was sorted into the appropriate channel, the WOLF G2 utilizes a secondary optical sorting verification (OSV) system (Figure 3.8.).

The OSV system is comprised of three infrared LED emitters located on one side of the cartridge fixture, and three detectors on the other side. The cartridge sits between the emitters and detectors; each emitter/detector pair lines up with one of the three outlet channels (A, B, C). When a bead passes by the light/detector pair, it will block the transmission of light into the detector. Measuring the signal intensity over time in each detector enables the algorithm to determine the sorting efficiency at each tested PZT pulse delay. The algorithm then automatically chooses the best delay for the individual cartridge.


4. Designing an experiment with the WOLF G2 – tips and tricks

While most of the data acquisition and analysis with the WOLF G2 differs only slightly from mainstream cell sorters, to successfully sort with the WOLF G2, the user needs to keep in mind some specificities related to the microfluidic nature of the fluidic pathway and to the gentle sorting mechanism.

While planning an experiment with the WOLF G2, the user should ask him/herself the following questions:

4.1. What sample do I want to sort?

It is important to consider the nature of the cells the user wants to run through the cartridge and develop a sample preparation strategy that is optimized towards microfluidic cell sorting. Challenging samples, which either contain sticky cells, great

number of debris or cells that are unhappy/dying and releasing extracellular DNA, may need additional work upstream of

the WOLF G2. Additives such as EDTA or DNase, change in sorting conditions such as diluting the input sample or sorting on ice, or additional straining steps prior to the sort may be needed to promote the best possible conditions for an optimal experimental outcome. It is always recommended to filter all buffers through a 0.22µm PES syringe filter, and to strain cells through a 40µm strainer before running them through the cartridge, regardless of sample type.

4.2. What is my target population?

In some cases, the user is trying to sort for a population of cells or particles whose proportion within the sample is unknown. Most of the times, however, the user knows–at least approximately–what percentage of the total sample is comprised of the particles of interest. Taking into consideration the properties of the sample, sorting speed of the WOLF G2, sorting efficiency at different concentrations, desired output purity and total time the user desires to spend sorting, the user can determine the optimal conditions for the sort to achieve best experimental results in the least amount of time.

4.3. How many cells do I need to sort for my downstream assay?

Like determining the target population, the user should know how many cells are needed for the downstream assay, and what purity is desired. The conditions used will differ dramatically between a single cell sort of one 96-well plate, and a bulk enrichment sort.

4.4. What colors do I want to use?

Depending on the configuration, the WOLF G2 offers up to 9 different channels to choose from for complex multi-color experiments. It also uses a single optical pathway for both lasers; each detector detects emitted wavelength produced by excitation from either of the two lasers. This means that the gains on every detector are potentially shared between two different fluorochromes, each excited by its own laser. To design a successful experiment, the user needs to make sure that fluorochromes paired on the same detector can be analyzed using similar gains. If using a previously untested antibody, the user should also make sure to use the best possible concentration for staining. A titration curve for every new antibody is recommended before designing a multi-color experiment.

4.5. What controls are available to me?

To run a successful experiment, unstained and single-color controls are essential to set gains appropriately and to compensate potential signal spillover. Typically, unstained and single-color stained aliquots of the sample are the easiest way to get controls; however, this is not always the best practice.

A single-color control should be as bright as or, preferably, brighter than the sample of interest; it should also be stained with the same fluorophore. If the sample of interest cannot be used to make single color controls (for example, if one or more of the markers of interest are poorly expressed and thus dim), user should consider utilizing compensation beads or cells known to express the target marker in abundance.

Always use a non-transfected control if sorting cells transfected with a fluorescent protein tag. If your cells contain more than one fluorescent protein, consider getting controls that express each of the proteins independently.

Always set up a control for live-dead dyes. To ensure the dyes are bright, consider microwaving the live-dead control cell aliquot on high for 5 seconds to induce cell death and ensure a positive expression of the live-dead dye.

5. Conclusion

WOLF G2 is a user friendly and gentle sorter, that permits an easy design of multi-color experiments with high quality results. Considerations need to be given to the microfluidic nature of the system. Thoughtful upstream sample preparation will ensure optimal sorting and high-quality downstream assay results.
